Balanced Wave Spring H7N Industrial Mechanical Seals With O Ring
Contact Person : Davis
WhatsApp : +8618130083767
| Minimum Order Quantity : | 5PC | Price : | Negotiated |
|---|---|---|---|
| Packaging Details : | box as requirement | Delivery Time : | 20-30DAYS |
| Payment Terms : | T/T, Western Union, L/C | Supply Ability : | 100000PC/Month |
| Place of Origin: | MADE IN CHINA | Brand Name: | JR |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | M010S1 |
|
Detail Information |
|||
| Material: | Metal | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Style: | Mechanical Seal,Aluminium Alloy Cable Seal,Oil,Rubber O Ring & Gasket&custom Gasket | Size: | 28mm 38mm |
| Application: | Engine,Gearbox,Trucks,Cars,mechanical Seal Industry | Product Name: | Cable Container Seal,Sea Water Mechanical Seals 560,iron Shell Oil Seal,M7N Burgmann Mechanical Seals,Wheel Hub Oil Seal |
| Color: | Black,any Color | Feature: | Oil Resistance,Sealing Performance,Durable,Good Performance With Low Price,Wear Resistance |
| Type: | M010S1 | Pressure: | ≤1.2MPa |
| Temperature: | -20C°~200C° | Speed: | ≤30 M/s |
| Axial Movement: | 1.0mm | Medium: | Water And Dust,concentrated Base,oil,Sulphuric Acid,water |
| Sealing Face: | Silicon Carbide,Carbon,tungsten Carbide,graphite,TC | Keywords: | Aes Mechanical Seal, Standard Mechanical Seal |
| Usage: | Engine,Transmission,Rear Axle,mechanical Seal For Pump | Hs Code: | 8484200090 |
Product Description

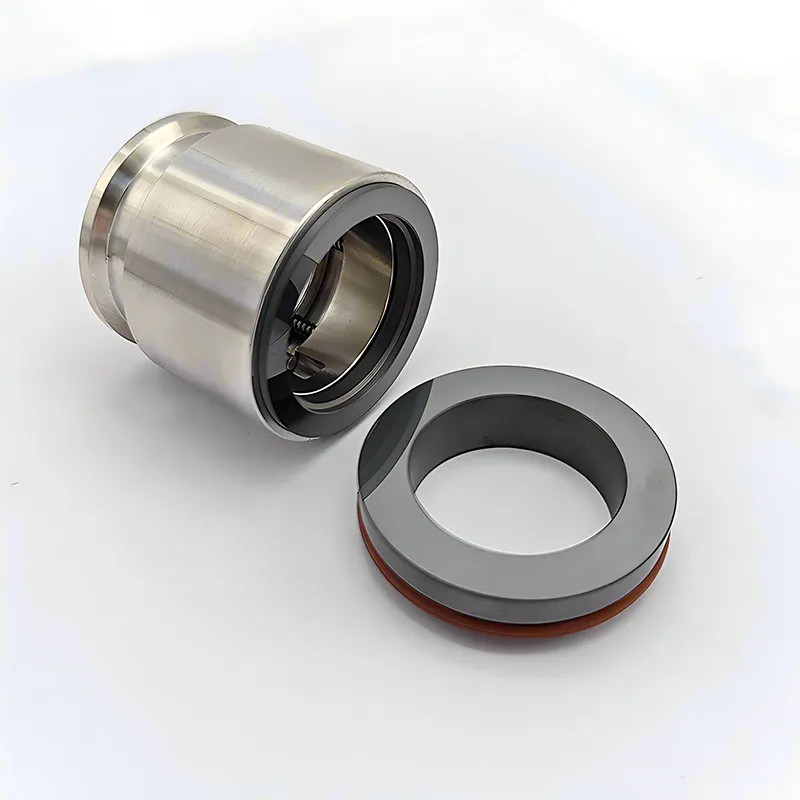

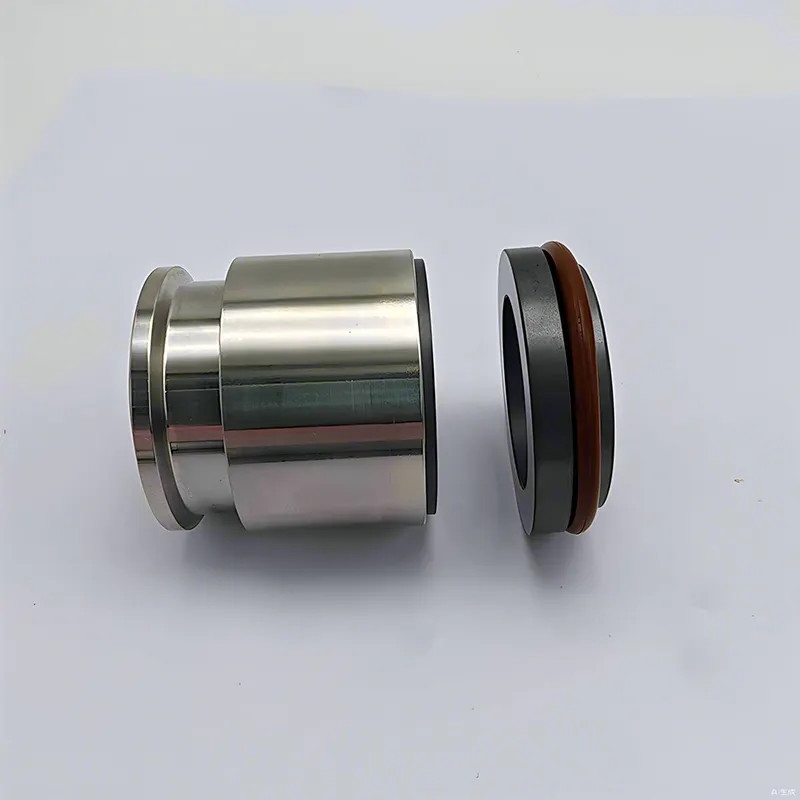

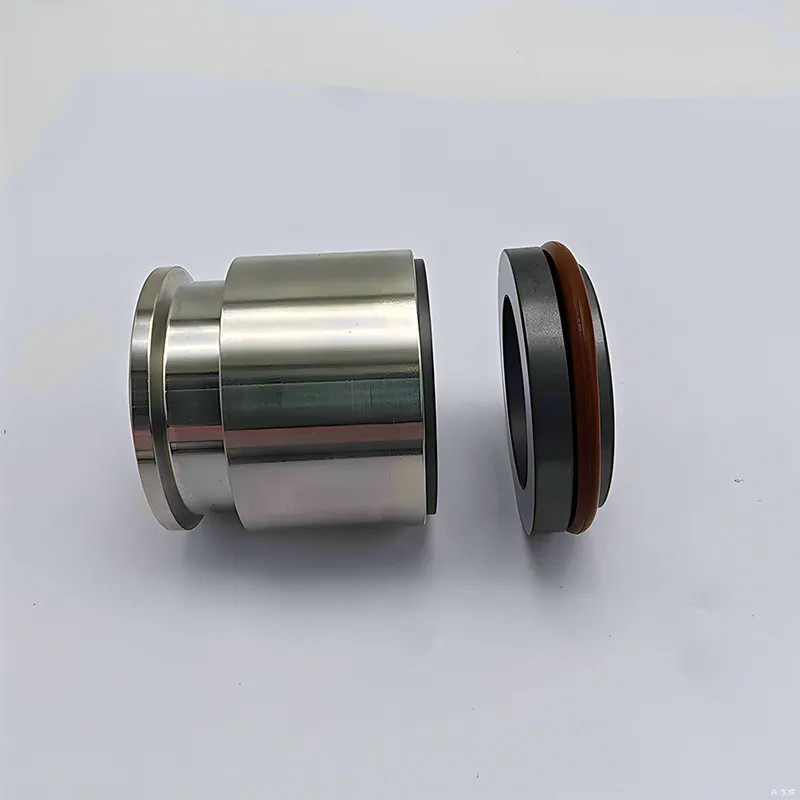

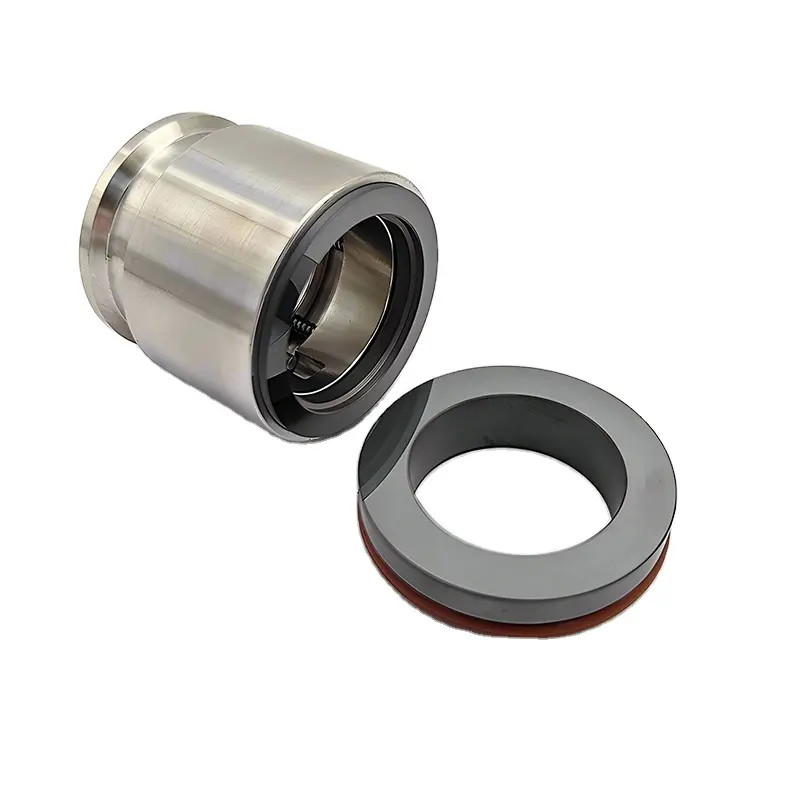

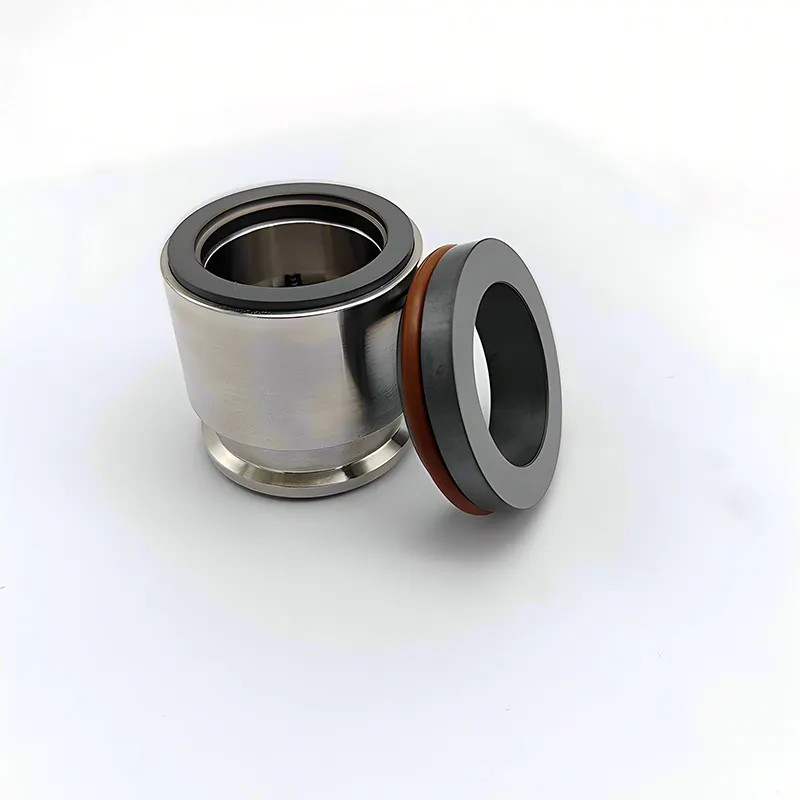

AES M010 S1 SHJ97 Vulcan 1663 ROTEN EHS3 Mechanical Seal for Higle Hygiana Centrifugal Pumps 28MM 38MM
Materials:
Performance Capabilities
|
mechanical seal
|
||
|
Operational Condtions
|
Size
|
Material
|
|
Temperature:
-40℃ to 200℃ dependent on the elastomer
|
10mm to 80mm,
|
Face: Carbon, SiC, TC
|
|
Pressure:Up to 25 bar
|
Seat: Ceramic, SiC, TC
|
|
|
Speed:Up to 20 m/s
|
Elastomer:NBR, EPDM, FKM
|
|
|
End Play /axial float Allowance:±1.0mm
|
Other Metal Parts : SS304, SS316
|
|
We are engaged in manufacture and installation exporting and wholesaling quality range of Industrial Seal, Single Spring Seal, Balance and Unbalance Spring Seal, External Mounted Seal, PTFE Bellow External Mounted Seal, Catridge Balance Seal, Multiple Spring Balance Seal, Dry Running Reverse Balance Seal, Agitator Double Acting Unbalance Seal, Single Conical Helical Spring, Rubber Bellow Seal, Multi Spring Seal, Metal Bellow Seal, Elastomer Bellow Seal, Conical Spring Seal, Air Condition Compressor Seal, Auto Cooling Seal, Metallic Bellow Seal,
All ranges of mechanical seals for Flygt Pumps, Grundfos Pumps, Pumps, APV Pumps, Grindes Pumps, Fristam, ABS, Alleeiler, EMU, GEA
Tunchenhagen, Godwin, Hidrostal, Hilge, Johnson, Lowara, Waukesha, Vogelsang Pumps etc.
At the meantime, we could manufacture seals according to your sample or drawing, and design as your request,Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Question 1: Are you a factory or a trade company?
Answer: We are a factory and have our top sales for the trade service.
Question 2: Can I try to get a SAMPLE before the order?
Answer: Sure. You can ask for the samples. Usually they're free.
Question 3: Where is your factory located? How can I visit there?
Answer: Our factory is located in Ningbo, China. You can fly to Ningbo or Shanghai airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
Question 4: How does your factory do regarding quality control?
Answer: Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001 authentication.
Question 5: How about the lead time?
Answer: Within10-20 days after getting the prepayment.
Question 6: How can we pay?
Answer: For small sample shipping cost, you can pay either by paypal or by T/T. And by T/T at sight for large amount of the order.
Question 7: If OEM available?
Answer: Yes, we provide all of our products OEM /ODM service.
Question 8: If I can buy pumps or pump parts from your company?
Answer: Yes , we also provide pumps and pump parts, such as Lobe pumps, Compound & homogeneous pumps, Homogeneous & emulsification pumps and so on
