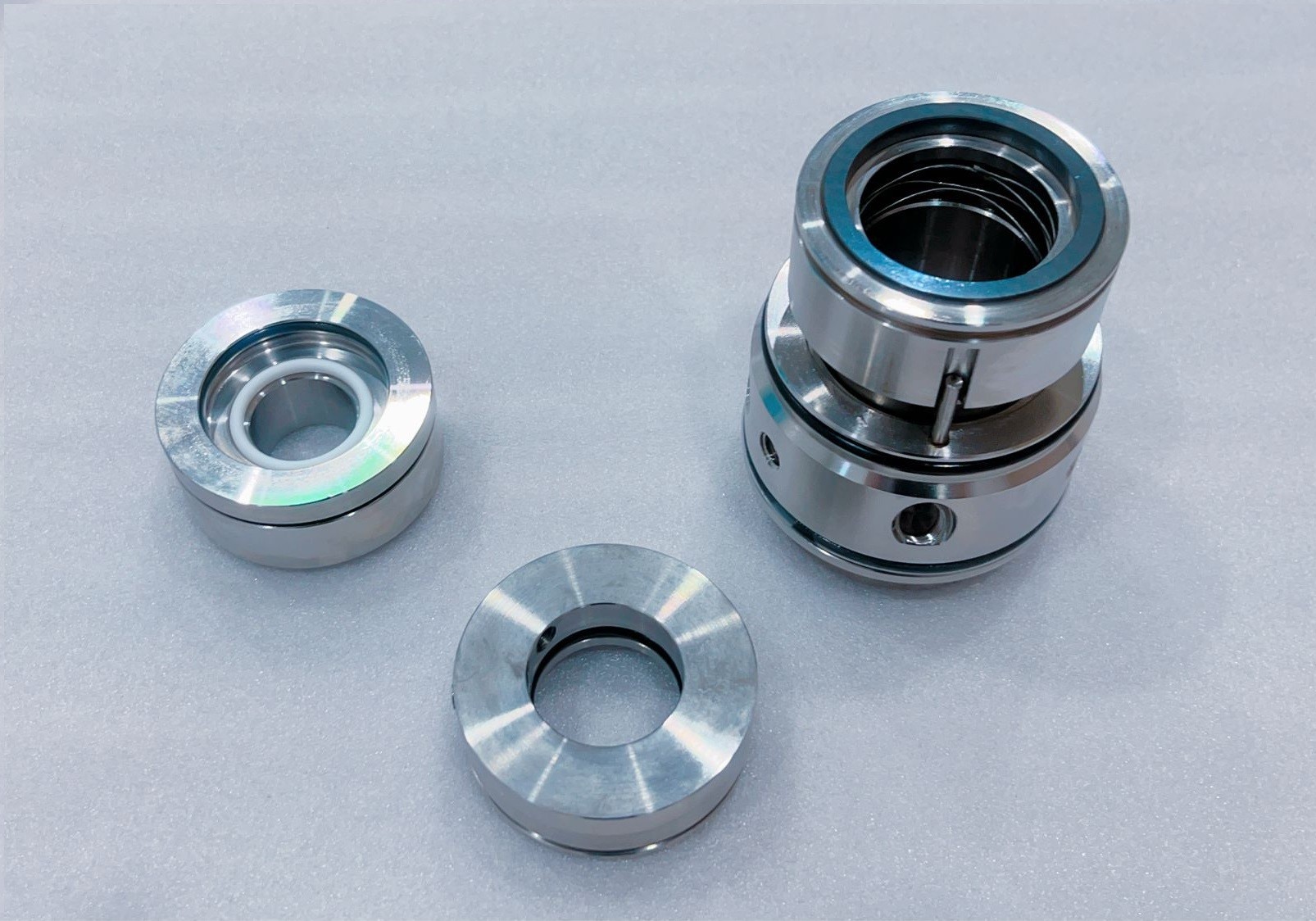

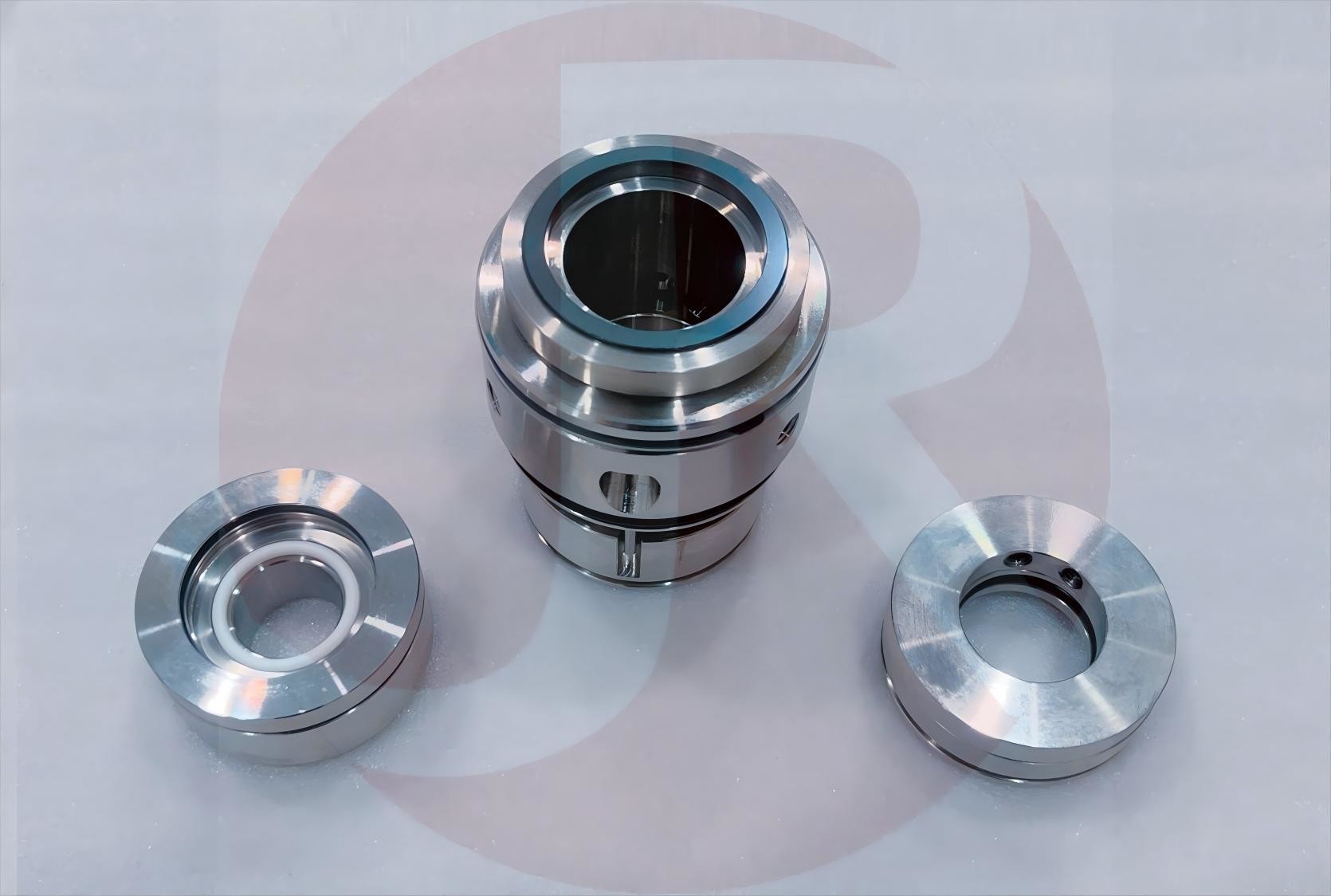

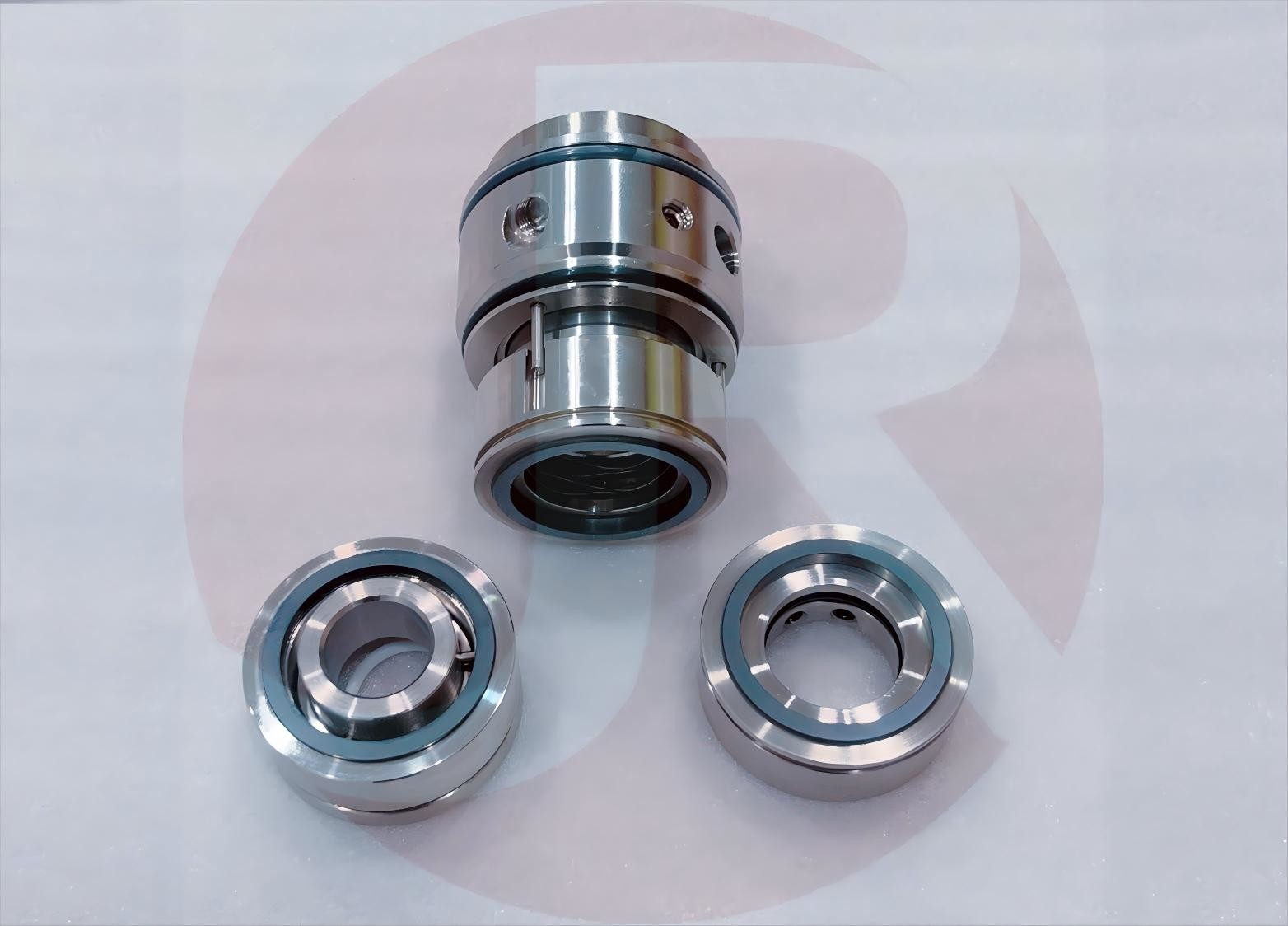

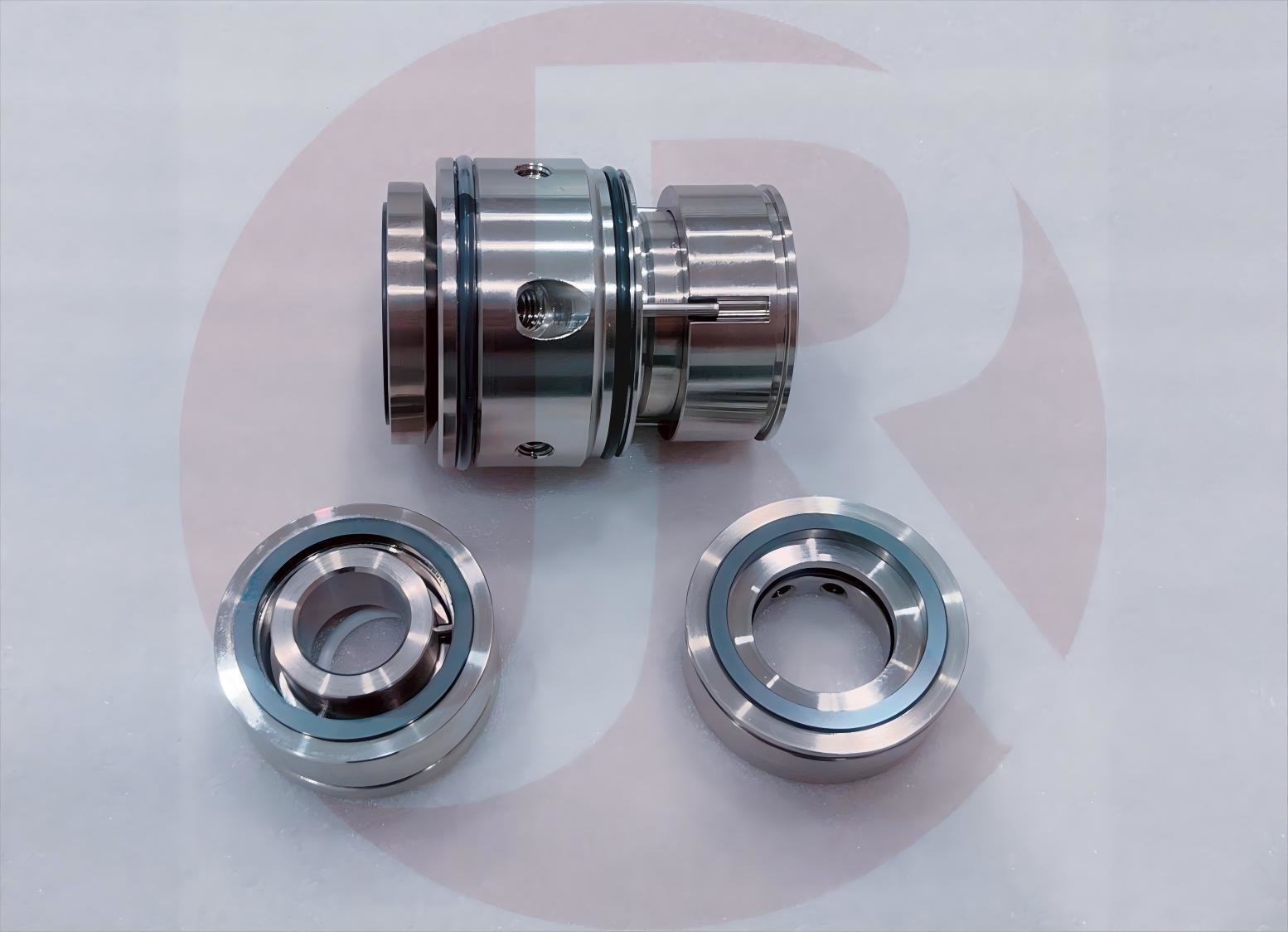

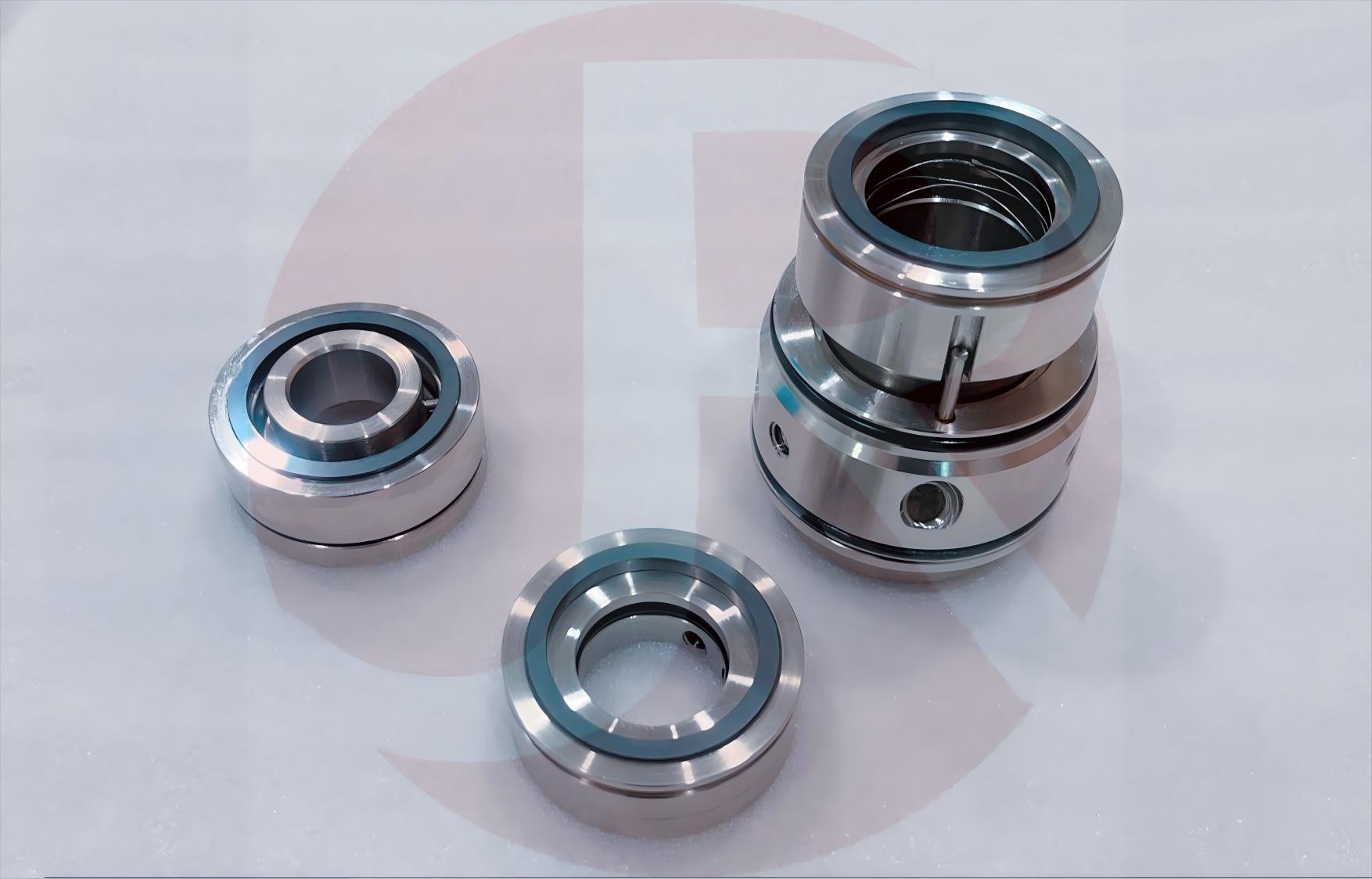

Mechanical Seal For SULZER AHLSTAR Pumps Andritz Pumps JCS2 JCS2A JCS2P

Mechanical Seal For SULZER AHLSTAR Pumps Andritz Pumps JCS2, JCS2A & JCS2P

Operational Conditions:

1. Pressure: 0 ~ 2.0 MPa

   Temperature: - 20 ~ 180 ºC

   Linear Speed: 20 m/s or less

   Pressure of Cooling Water: 0.1 to 0.3 MPa

   Solid Capacity: 25% or less



   Structure: Double-End

   Pressure: High Pressure Mechanical Seals

   Speed: High Speed Mechanical Seal

   Temperature: High Temperature Mechanical Seal

   Performance: Corrosion

   Standard: Specific Customization

   Model NO.: JCS2, JCS2A and JCS2P

   Balance: Balanced

   Specification: Inner Diameter: 30 mm to 100 mm

   JCS2, JCS2A and JCS2P Double Pusher Mechanical Seal for Paper-making Equipment, Alumina Plants, Deashing System and Slurry Pumps, Safematic JCS2 Replacement Seal



   Structural Features: JCS2 series mechanical seals are widely used in many types of pumps such as paper pulp pumps. The double-balanced design of the seal allows the use of both pressurized and non-pressurized sealant fluid. This component seal works as a replacement seal of John Crane JCS2 mechanical seal.

   Industrial Standards: Specific Customization.



   Scopes of Application: mainly used in paper-making equipment, slurry pumps, pressure screens, for industries such as chemical engineering, power plants, mining, oil refining, alumina plants, food processing, pharmacy, and paper making. This seal works as an alternative to similar products of Sulzer, working as Safematic JCS2 replacement seals.

 Materials:

• Stationary Ring: Ceramic, Silicon Carbide, TC
• Rotary Ring: Carbon, Silicon Carbide
• Secondary Seal: NBR, EPDM, FKM, PTFE
• Spring and Metal Parts: Steel
• DETAILS

  Shaft Size	30mm/40mm/50mm/60mm/80mm/90mm
  Material	Face: Carbon, SiC, TC Seat: SiC, TC O-ring:NBR,EPDM,FKM,Aflas,FEP,Kalrez,Chemraz etc Spring: SS316,hastelloy C Other Metal Parts : SS316
  Performance Capabilities	Temperature:-20°C to 220°C, depends on the elastomer Pressure: Up to 12bar Speed: Up to 15m/s End play/axial float allowance: ±2mm
